Hosted Service with SIP ALG

InnoMedia Enterprise Session Border Controllers (ESBCs) with SIP ALG for Hosted Service – Features and Benefits

  • NAT traversal and topology hiding
  • Firewall penetration
  • SIP Header Manipulation Rules (SHMR) for in-field manipulation
  • VPN tunneling for access and management of hosted devices
  • Carrier-grade monitoring utilities
  • Highly integrated with internal battery and optional DOCSIS 2.0/3.0 cable modem
  • Highly manageable with auto-provisioning and device management

As part of InnoMedia’s complete and comprehensive business voice service solutions for service providers, InnoMedia’s ESBC product family provides a SIP ALG function for topology hiding, NAT traversal, SHMR, carrier-grade monitoring with VoIP metrics, test agent, ladder diagrams and call flow trace captures, and many other features to support service providers’ hosted voice services.  Being highly integrated, InnoMedia’s ESBC family is ideal for service providers looking to offer reliable and scalable hosted services. For more information and a comparison between SIP ALG and B2BUA, please see the InnoMedia ESBC SIP ALG and B2BUA feature comparison table.

InnoMedia’s ESBC products that support SIP ALG for Hosted Service include the ESBC8328 (100BT for WAN and LAN), ESBC9328 (Gigabit Ethernet for WAN and LAN), ESBC8528 (DOCSIS 2.0 for WAN and Ethernet 100BT for LAN), ESBC9528 (DOCSIS 3.0 for WAN and Gigabit Ethernet for LAN), ESBC9378 (Gigabit Ethernet for WAN and LAN), ESBC9578 (DOCSIS 3.0 for WAN and Gigabit Ethernet for LAN), and the PRI ESBC ESBC9380 (Gigabit Ethernet for WAN and LAN) and ESBC9580 (DOCSIS 3.0 for WAN and Gigabit Ethernet for LAN).  The cable-embedded ESBCs are powered with patented Smart-DQoS technology for intelligent UGS service flow establishment to ensure QoS-based voice services.

InnoMedia ESBC Models
Cable Based Ethernet Based
ESBC8528-4B
Docsis 2.0 CM-based ESBC with SIP ALG and B2BUA
ESBC8328-4B
10/100 WAN based ESBC with SIP ALG and B2BUA
ESBC9528-4B
Docsis 3.0 CM-based ESBC with SIP ALG and B2BUA
ESBC9328-4B
Gigabit WAN based ESBC with SIP ALG and B2BUA
ESBC9578-4B
Docsis 3.0 CM-based ESBC with SIP ALG, B2BUA, and media transcoding
ESBC9378-4B
Gigabit WAN based ESBC with SIP ALG, B2BUA, and media transcoding
ESBC9580-4B
Docsis 3.0 CM-based PRI ESBC with SIP ALG and B2BUA
ESBC9380-4B
Gigabit WAN based PRI ESBC with SIP ALG and B2BUA



InnoMedia Enterprise Session Border Controllers for Business Voice Services
Model Name WAN 4LAN
Ports
4FXS ports Internal Battery B2BUA
(SIP Trunk)
SIP ALG
(Hosted PBX)
Transcoding T1/PRI QoS
ESBC8528-4B DOCSIS 2.0 10/100BT Yes Yes Yes Yes Smart-DQoS
ESBC9528-4B DOCSIS 3.0 Gigabit Yes Yes Yes Yes Smart-DQoS
ESBC9578-4B DOCSIS 3.0 Gigabit Yes Yes Yes Yes Yes Smart-DQoS
ESBC9580-4B DOCSIS 3.0 Gigabit Yes Yes Yes Yes Yes Smart-DQoS
ESBC8328-4B 10/100BT 10/100BT Yes Yes Yes Yes ToS/DSCP
ESBC9328-4B Gigabit Gigabit Yes Yes Yes Yes ToS/DSCP
ESBC9378-4B Gigabit Gigabit Yes Yes Yes Yes Yes ToS/DSCP
ESBC9380-4B Gigabit Gigabit Yes Yes Yes Yes Yes ToS/DSCP

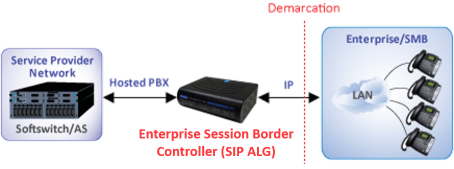

Solution_IPcentrex_diagram0



ESBC with SIP ALG for Hosted Services
